MCP

Connect AI agents like Claude, ChatGPT, and Cursor to your semantic layer using the Model Context Protocol. One URL, governed access to your metrics and dimensions.

Bonnard exposes your semantic layer as a remote MCP server. Add one URL to your agent platform and it can explore your data model, run queries, and render charts — all through the Model Context Protocol.

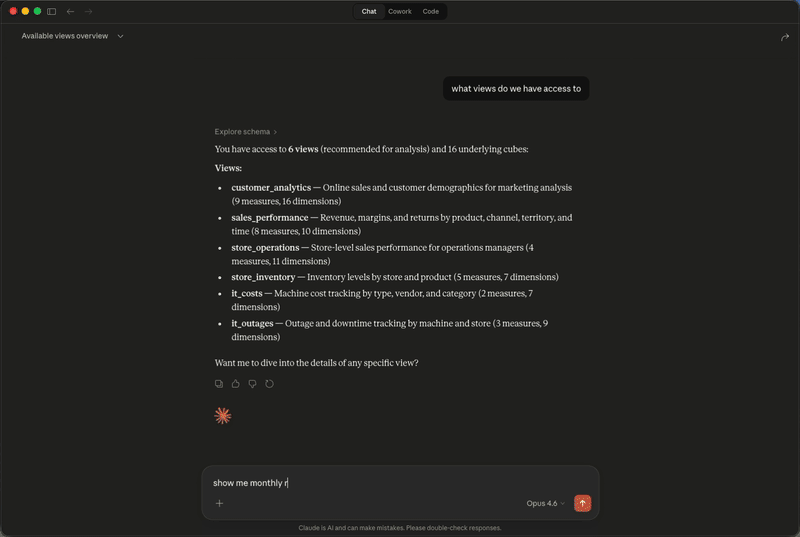

MCP chat with visualisations

MCP URL

https://mcp.bonnard.dev/mcp

On first use, your browser opens to sign in — the agent receives a 30-day token automatically. No API keys, no config files, no secrets to rotate.

Connect your agent

Bonnard works with any MCP-compatible client:

Claude Desktop — Add as a custom connector
ChatGPT — Add via Settings > Apps (Pro/Plus)
Cursor — Add via Settings > MCP or .cursor/mcp.json
Microsoft Copilot Studio — Add as an MCP tool with OAuth 2.0 authentication
VS Code / GitHub Copilot — Add via Command Palette or .vscode/mcp.json
Claude Code — Add via claude mcp add or .mcp.json
Windsurf — Add via MCP config
Gemini CLI — Add via .gemini/settings.json

Setup

Claude Desktop

Click the + button in the chat input, then select Connectors > Manage connectors

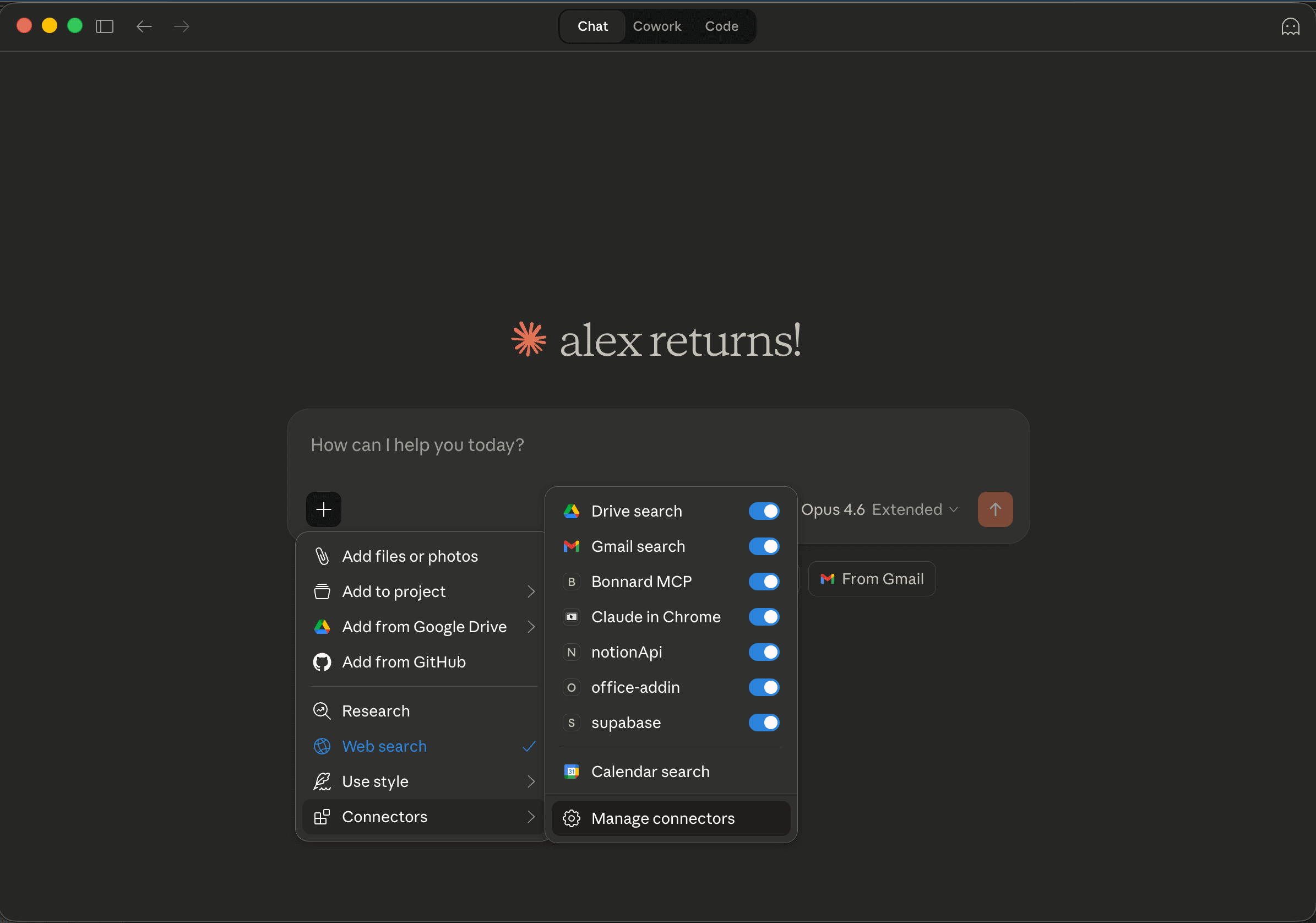

Claude Desktop — Connectors menu in chat

Click Add custom connector
Enter a name (e.g. "Bonnard MCP") and the MCP URL: https://mcp.bonnard.dev/mcp
Click Add

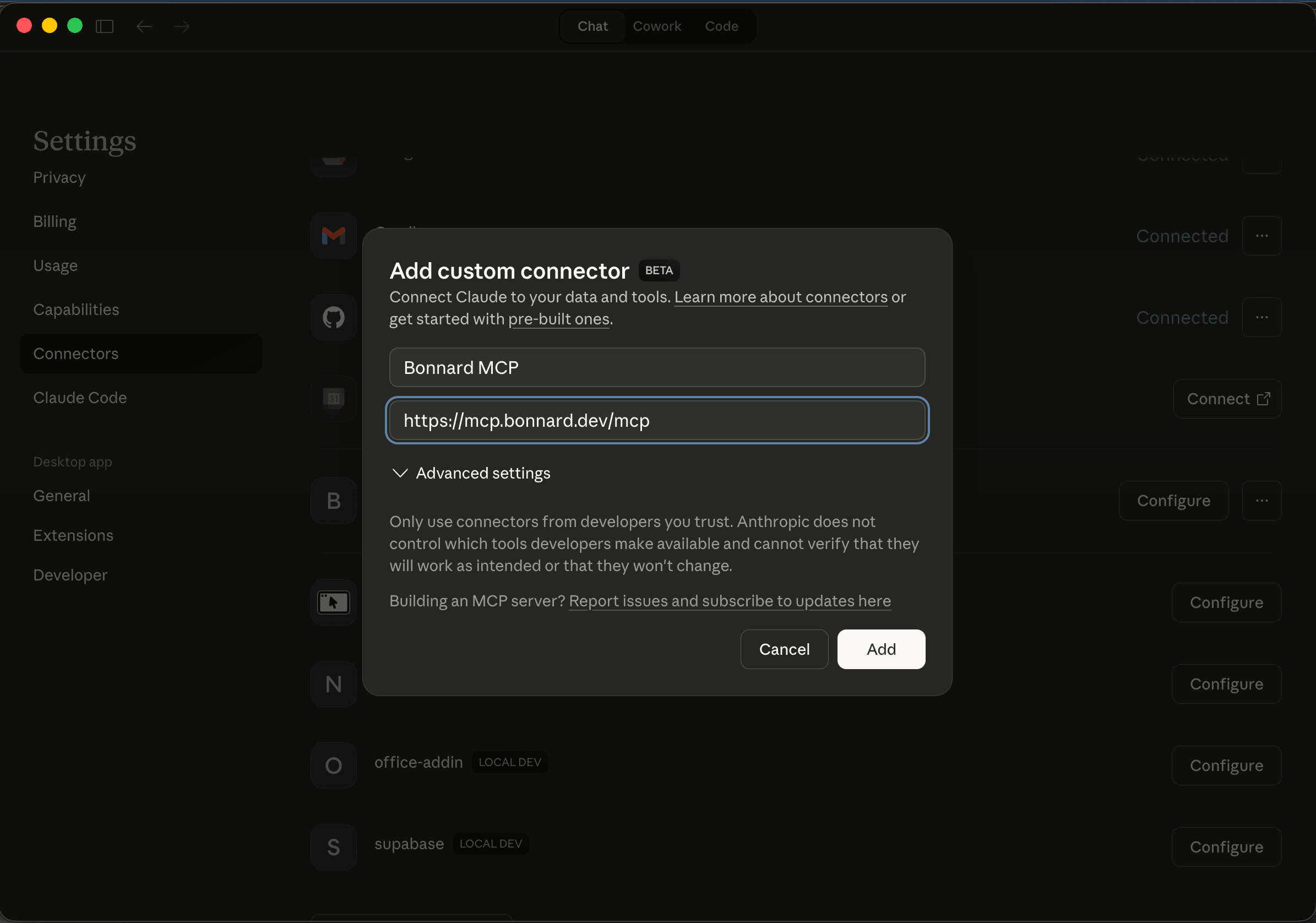

Claude Desktop — Add custom connector dialog

Once added, enable the Bonnard connector in any chat via the Connectors menu.

Remote MCP servers in Claude Desktop must be added through the Connectors UI, not the JSON config file.

ChatGPT

Custom MCP servers must be added in the browser at chatgpt.com — the desktop app does not support this.

Go to chatgpt.com in your browser
Open Settings > Apps

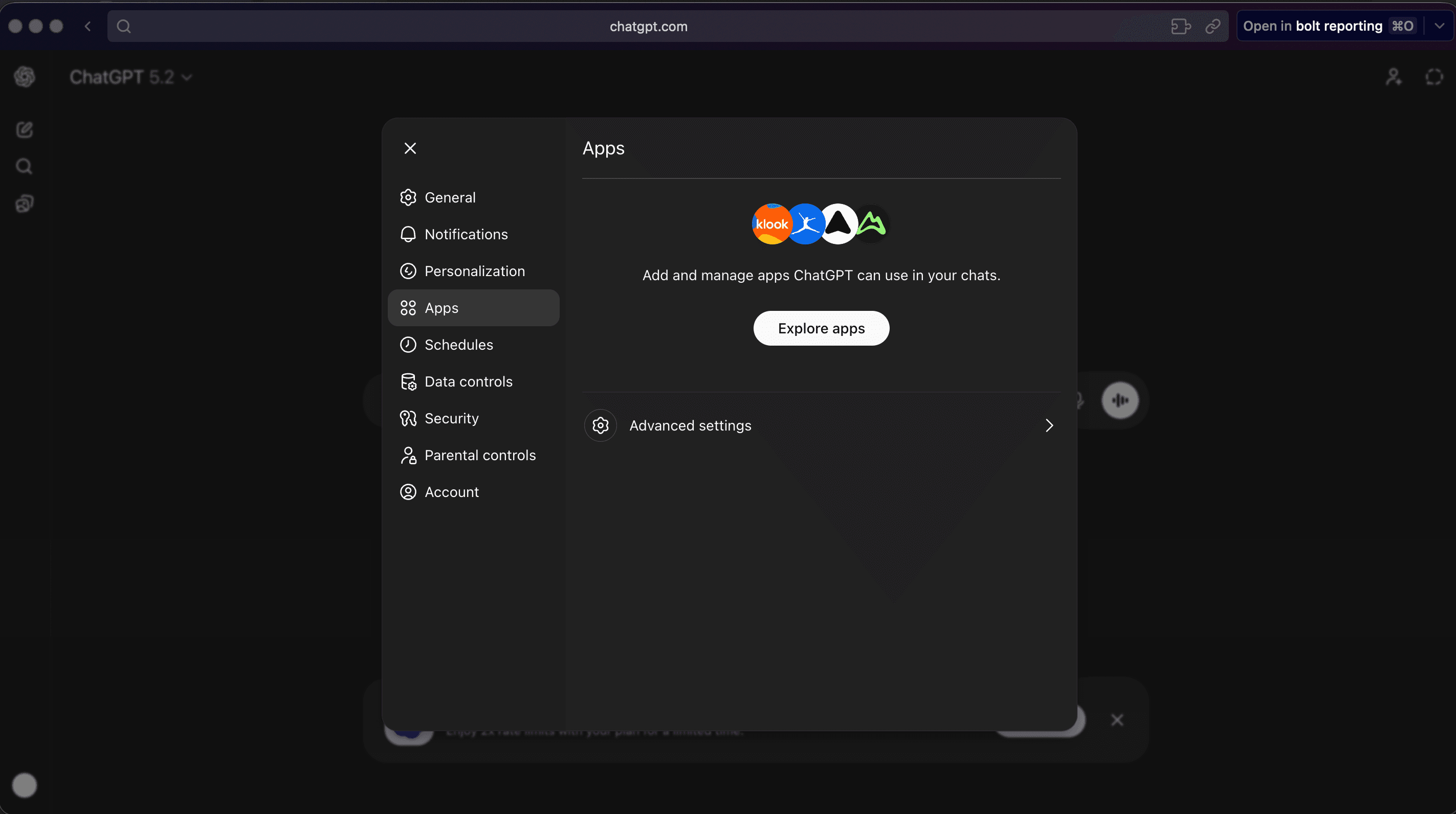

ChatGPT — Settings > Apps

Click Advanced settings, enable Developer mode, then click Create app

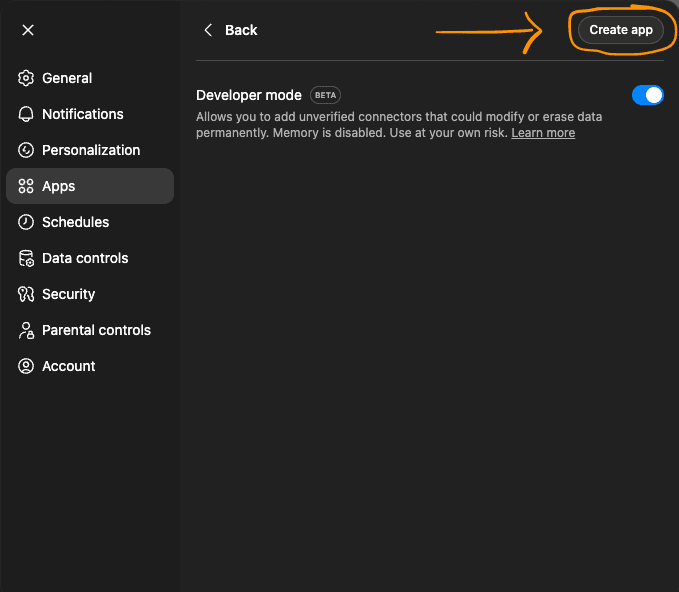

ChatGPT — Advanced settings with Developer mode and Create app

Enter a name (e.g. "Bonnard MCP"), the MCP URL https://mcp.bonnard.dev/mcp, and select OAuth for authentication
Check the acknowledgement box and click Create

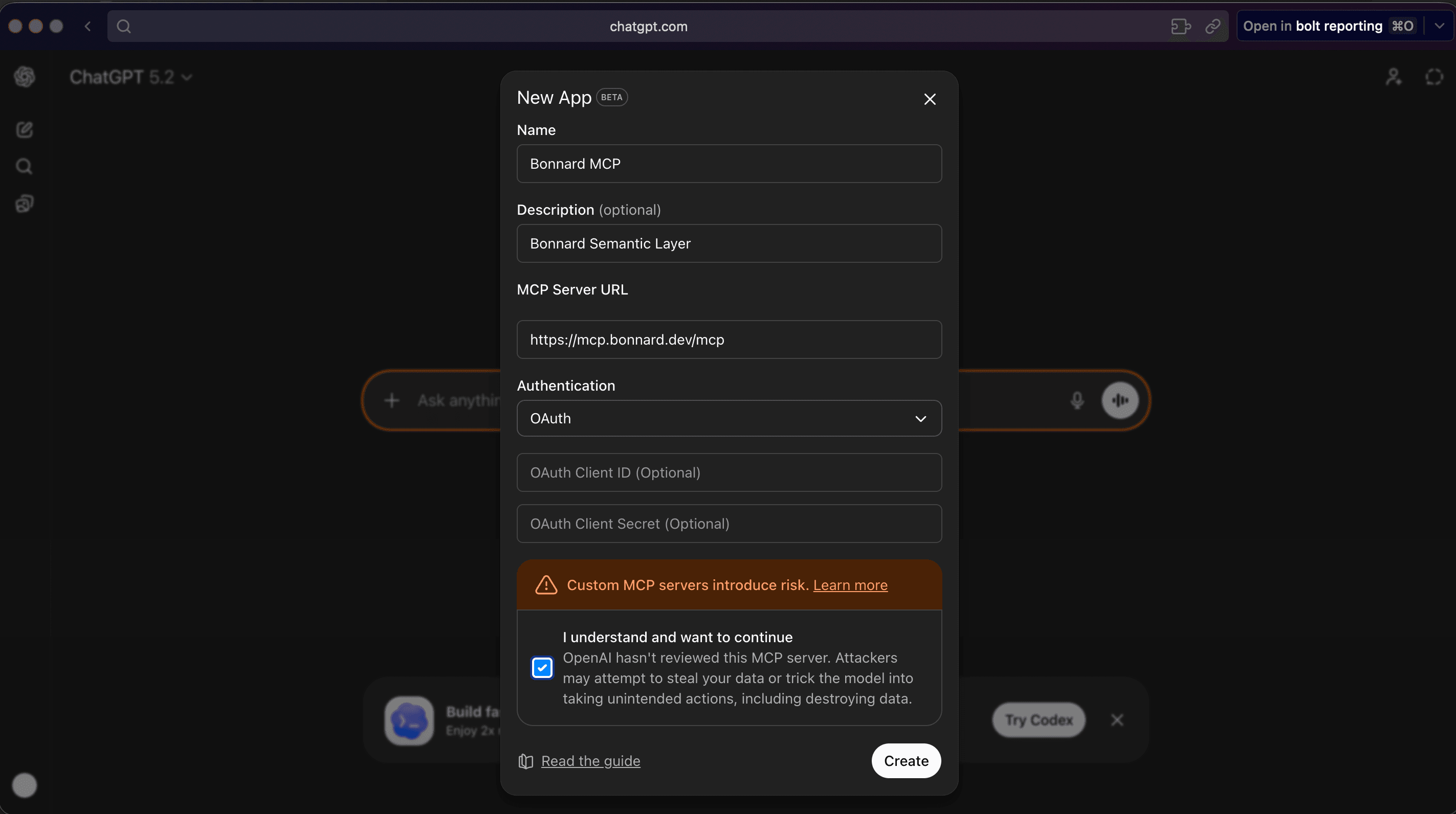

ChatGPT — Create new app with MCP URL

Once created, the Bonnard connector appears under Enabled apps:

ChatGPT — Bonnard MCP available in chat

Available on Pro and Plus plans.

Cursor

Open Settings > MCP and add the server URL, or add to .cursor/mcp.json in your project:

{
  "mcpServers": {
    "bonnard": {
      "url": "https://mcp.bonnard.dev/mcp"
    }
  }
}

On first use, your browser will open to sign in and authorize the connection.

VS Code / GitHub Copilot

Open the Command Palette and run MCP: Add Server, or add to .vscode/mcp.json in your project:

{
  "servers": {
    "bonnard": {
      "type": "http",
      "url": "https://mcp.bonnard.dev/mcp"
    }
  }
}

On first use, your browser will open to sign in and authorize the connection.

Claude Code

Run in your terminal:

claude mcp add --transport http bonnard https://mcp.bonnard.dev/mcp

Or add to .mcp.json in your project:

{
  "mcpServers": {
    "bonnard": {
      "type": "http",
      "url": "https://mcp.bonnard.dev/mcp"
    }
  }
}

Windsurf

Open Settings > Plugins > Manage plugins > View raw config, or edit ~/.codeium/windsurf/mcp_config.json:

{
  "mcpServers": {
    "bonnard": {
      "serverUrl": "https://mcp.bonnard.dev/mcp"
    }
  }
}

Gemini CLI

Add to .gemini/settings.json in your project or ~/.gemini/settings.json globally:

{
  "mcpServers": {
    "bonnard": {
      "url": "https://mcp.bonnard.dev/mcp"
    }
  }
}

Authentication

MCP uses OAuth 2.0 with PKCE. When an agent first connects:

Agent discovers OAuth endpoints automatically
You are redirected to Bonnard to sign in and authorize
Agent receives an access token (valid for 30 days)

No API keys or manual token management needed.

Available Tools

Once connected, AI agents can use these MCP tools:

Tool	Description
`explore_schema`	Discover views and cubes, list their measures, dimensions, and segments. Supports browsing a specific source by name or searching across all fields by keyword.
`query`	Query the semantic layer with measures, dimensions, time dimensions, filters, segments, and pagination.
`sql_query`	Execute raw SQL against the semantic layer using Cube SQL syntax with `MEASURE()` for aggregations. Use for CTEs, UNIONs, and custom calculations.
`describe_field`	Get detailed metadata for a field — SQL expression, type, format, origin cube, and referenced fields.
`visualize`	Render line, bar, pie, and KPI charts directly inside the conversation.

Charts in chat

The visualize tool renders interactive charts inline — auto-detected from your query shape. Charts support dark mode, currency and percentage formatting, and multi-series data.

Ask "show me revenue by region this quarter" and get a formatted chart in your conversation, not a data dump.

Testing

# Verify the MCP server is reachable
bon mcp test

# View connection info
bon mcp

Managing Connections

Active MCP connections can be viewed and revoked in the Bonnard dashboard under MCP.
